Teledyne LeCroy T3DSO1000X series, digital oscilloscopes

Manufacturer:

TELEDYNE LeCroy
Price:

Please contact us
Priced individually

Ask about product

Teledyne LeCroy T3DSO2000X series of digital oscilloscopes

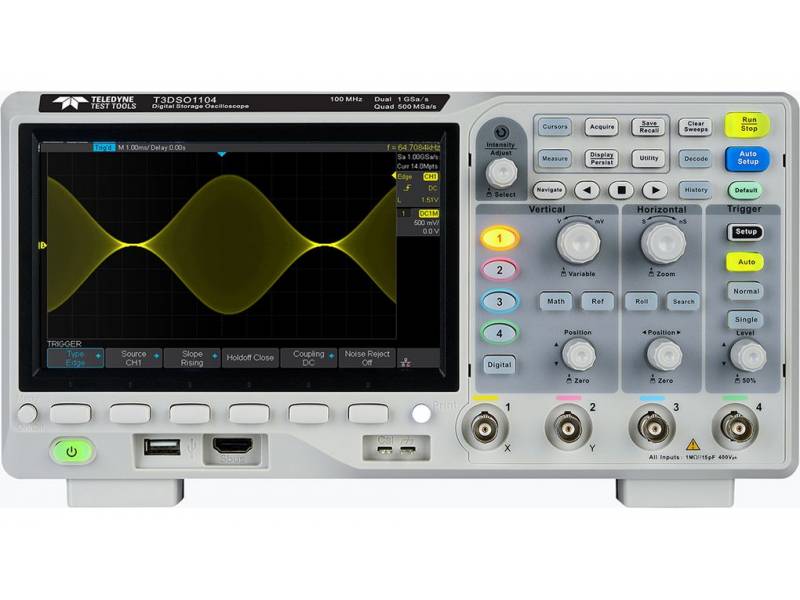

The T3DSO1000/1000A series family of digital oscilloscopes from Teledyne LeCroy features 2-channel and 4-channel models. The 2-channel model is available with 100 MHz, 200 MHz, 350 MHz bandwidths, a single ADC with a maximum sampling rate of up to 2GSa/s and 28 Mpts of memory sampling. A 4-channel range is available for 100MHz and 200MHz includes two 1GSa/s ADCs and two 14 Mpts memory modules. When all channels are in use, each has a sampling rate of 500MSa/s and a standard recording length of 7Mpts. When only one channel on the ADC is active, the maximum sampling rate is 1GSa/s and the maximum recording length 14Mpts. A user-friendly front panel facilitates simple measurements.

MODELS AVAILABLE:

MODELDESCRIPTION
T3DSO1102100 MHz, 500 MS/s per channel, 1 GS/s interlaced, 2 channels, 14 Mpts/Ch DSO
T3DSO1104100 MHz, 500 MS/s per channel, 1 GS/s interlaced, 4 channels, 14 Mpts/Ch DSO
T3DSO1204200 MHz, 500 MS/s per channel, 1 GS/s interlaced, 4 channels, 14 Mpts/Ch DSO

KEY FEATURES:

  • Available frequency bands: 100 MHz, 200 MHz, 350 MHz
  • Sampling frequency up to 2GSa/s depending on model
  • Memory length - up to 14Mpts/Ch (28 Mpts interlaced) depending on model
  • 7" bright TFT LCD screen (800 x 480)
  • MSO option - 16 digital channels. This allows mixed signal debugging for both series of oscilloscopes
  • Advanced triggering - Edge, Slope, Pulse Width, Window, Runt, Interval, Time Out (Dropout), Pattern, Video.
  • Optional serial bus trigger and standard decoding options - I2C, SPI, UART, RS232, CAN, LIN, which allow the user to debug the serial bus directly to the oscilloscope.
  • Waveform sequence recording - up to 80,000 waveforms can be recorded and played back.This allows the user to freely review the history of the waveforms made and note changes.
  • Connectivity - by USB for storage, printing or PC control, plus LAN. These tools enable quick export of data and screenshots for external analysis and reports.

Detailed specifications can be found in the "Downloads" tab.
