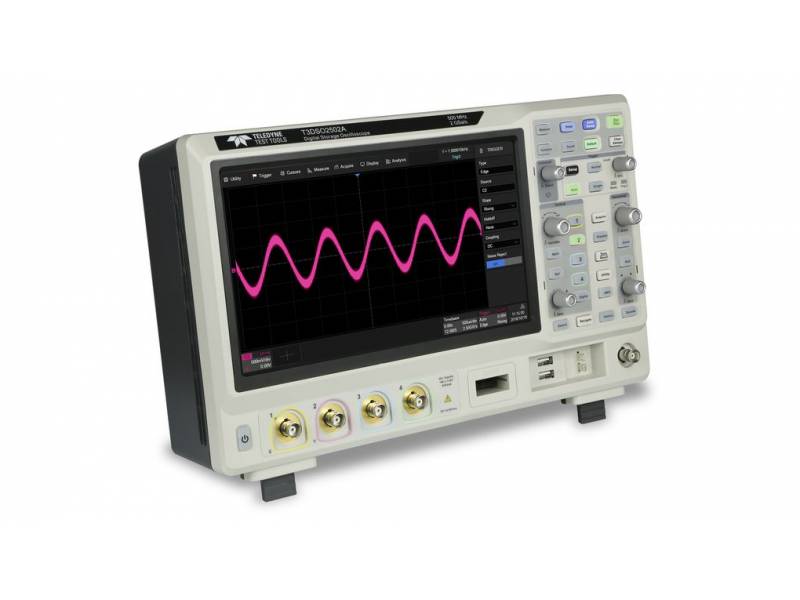

Teledyne LeCroy T3DSO2000X series of digital oscilloscopes

The T3DSO2000/2000A family of digital oscilloscopes from Teledyne LeCroy features 2-channel and 4-channel models with an analog frequency bandwidth of 100-500MHz. Each oscilloscope offers a maximum sampling rate of 2GSa/s and a maximum memory depth of 140Mpts in half-channel mode on the T3DSO2000 oscilloscopes and 200Mpts on the T3DSO2000A oscilloscopes. The 4-channel models of the T3DSO2000 series switch on 2GSa/s ADC and 140Mpts memory modules, while the T3DSO2000A series has 2 200Mpts memory modules. When all 4 channels are enabled, each channel has a sampling rate of 1GSa/s and a standard recording length of 70Mpts for the T3DSO2000 series, while 100Mpts for the T3DSO2000A series. When only one ADC channel is active, the maximum sampling rate is 2GSa/s and the maximum recording length is 140Mpts for the T3DSO2000 series and 200Mpts for the T3DSO2000A series. For practical and fast use of the oscilloscope, the most frequently used functions are accessible from the user-friendly front panel.

MODELS AVAILABLE:

MODELDESCRIPTION
T3DSO2102100MHz, 1GS/s per channel, 2GS/s interlaced, 2 channels, 70Mpts/Ch, 140Mpts interlaced DSO
T3DSO2104100MHz, 1GS/s per channel, 2GS/s interlaced, 4 channels, 70Mpts/Ch, 140Mpts interlaced DSO
T3DSO2202200MHz, 1GS/s per channel, 2GS/s interlaced, 2 channels, 70Mpts/Ch, 140Mpts interlaced DSO
T3DSO2204200MHz, 1GS/s per channel, 2GS/s interlaced, 4 channels, 70Mpts/Ch, 140Mpts interlaced DSO
T3DSO2302300MHz, 1GS/s per channel, 2GS/s interlaced, 2 channels, 70Mpts/Ch, 140Mpts interlaced DSO
T3DSO2304300MHz, 1GS/s per channel, 2GS/s interlaced, 4 channels, 70Mpts/Ch, 140Mpts interlaced DSO

KEY FEATURES:

  • Frequency band versions available up to: 100 MHz, 200 MHz, 300 MHz, 350 MHz, 500 MHz
  • Sampling frequency up to 2GSa/s
  • Memory length - up to 70Mpts/Ch (140 Mpts interlaced) for T3DSO2000 series and 100Mpts/Ch (200 Mpts interlaced) for T3DSO2000A series
  • 8" bright TFT LCD screen (800 x 480) for the T3DSO2000 series and 10.1" color capacitive touch TFT-LCD screen (1024 x 600) for the T3DSO2000A series
  • MSO option - 16 digital channels. This enables mixed signal debugging for both oscilloscope series
  • A 25MHz arbitrary generator option with 10 built-in waveforms for the T3DSO2000 series and a 50MHz arbitrary generator option with 6 built-in waveforms as standard for the T3DSO2000A series
  • Power analysis as standard for the T3DSO2000A series
  • Body charts as standard (after purchasing the arbitrary generator option) in the 10Hz-50MHz range for the T3DSO2000A series and 10Hz-500MHz with the help of the optional T3AFG500 generator
  • Advanced triggering - Edge, Slope, Pulse Width, Window, Runt, Interval, Time Out (Dropout), Pattern, Video.
  • Optional serial bus trigger and standard decoding options - I2C, SPI, UART, RS232, CAN, LIN, which allow the user to debug the serial bus directly to the T3DSO2000 series oscilloscope. Optional for purchase: CAN FD, FlexRay, I2S and MIL-STD-1553B.
  • Waveform Sequence Recording - Up to 80,000 waveforms in the T3DSO2000 series and up to 90,000 waveforms in the T3DSO2000A series can be recorded and played back. This makes it possible to freely review the history of runs made and note changes.
  • Connectivity - by USB for storage, printing or PC control, plus LAN. These tools enable quick export of data and screenshots for external analysis and reports.

Detailed specifications can be found in the "Downloads" tab.
