IDRC DSP-006-400HR

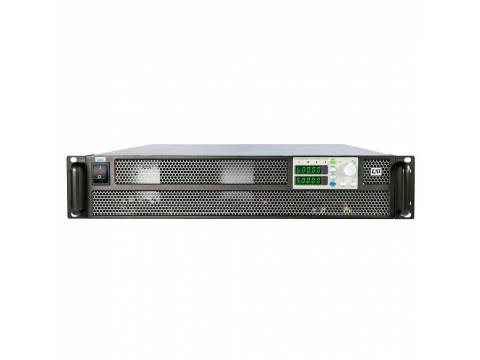

IDRC Switching Power Supply DSP-006-400HR

FEATURES

• Compact 2U high enclosure suitable for mounting in 19" racks
• Ventilation holes in the front panel and rear wall along with a variable speed fan for optimal cooling in a tight rack space (power supplies can be mounted one below the other without horizontal spacing)
• Two, five-digit LED displays for observing output voltage and current provide excellent visibility in all lighting conditions
• The power supply has LED indicators for operating status (output off, button lock, Shift pressed, CV and CC operation, etc.).
• Function keys and encoder knob allow you to quickly and precisely set the output parameters of the power supply
• Operation in CV voltage stabilization and CC current stabilization modes with automatic switching
• Power supply parameters:

One channel with maximum power of 3000 W

Output voltage: 0 - 6 V DC

Output current: 0 - 400 A DC

Voltage stabilization factor: 0.05% + 2.8 mV (CV) / 0.1% + 42 mA (CC)

Load stabilization factor: 0.05% + 6.2 mV (CV) / 0.1% + 85 mA (CC)

Ripple: 23 mVrms (CV) / 1000 mArms (CC)

Programming and reading resolution: ± 0.002% of full range

Setting accuracy (panel): ± 0.1% ± 3 Digits (voltage) / ± 0.5% ± 3 Digits (current)

Reading accuracy (panel): ± 0.2% ± 3 Digits (voltage) / ± 0.5% ± 3 Digits (current)

• Protection: overvoltage OVP (programmable), thermal OTP, overload OPP (programmable)
• Keypad lock function protects against accidental changes in operating parameters
• Possibility of parallel connection (up to five power supplies) or series connection of two power supplies, active load current division
• Compensation function for voltage drop on power cables up to 1 V due to actual voltage measurement on the load
• Programmable rate of rise and fall of power supply output parameters (from 0.1 s to 99.9 s)
• Internal memory for storing 16 power supply settings with local and remote recall capability
• Automatic restoration of the last settings after power-up
• Digital interfaces: LAN-LXI (standard), optically isolated RS-485 (standard) and GPIB supporting SCPI commands (optional)
• Analog interface and optional isolated analog interface with 0 - 10 V voltage inputs programming power supply voltage and current, and 0 - 10 V voltage outputs for monitoring power supply output parameters
• Remote control of power supplies via PC using interfaces: GPIB (up to 30 power supplies), RS-485 (up to 254 power supplies) or LAN-LXI (any number of power supplies)
• Power supply: 190 V AC - 240 V AC (50 Hz/60 Hz); Efficiency: 82%- 88%; Power factor: 0.99
• Dimensions (W x H x D): 430 mm x 88 mm x 470 mm
• Weight: approx. 15.1 kg
