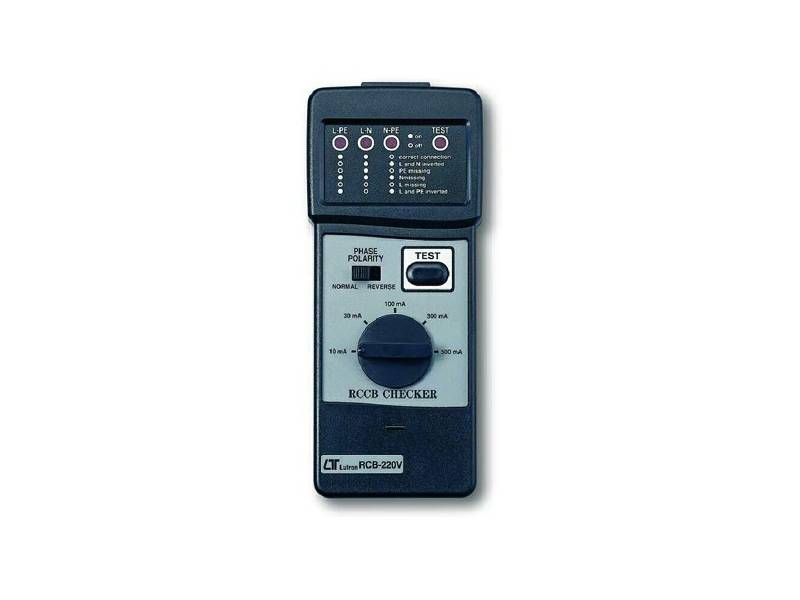

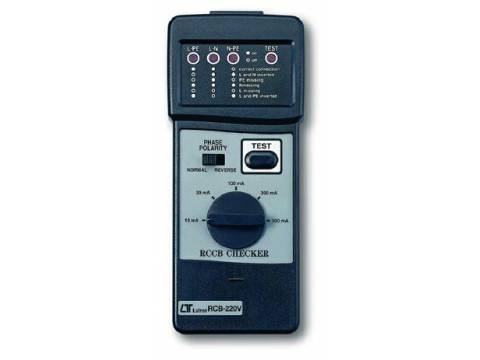

Lutron RCB-220V Residual Current Breaker Tester

Product Overview

Lutron RCB220 is a residual current circuit breaker tester.

Key features

• Residual current circuit breaker test for trip currents from 10 to 500mA.
• Test residual current circuit breakers at 5 differential (trip) current ratings: 10mA, 30mA, 100mA, 300mA, 500mA.
• Control of correct wiring of single-phase network sockets - signaling via 3 LEDs.
• Operation without its own power source - current consumption directly from the mains.
• Signaling (LED) of the occurrence of a shutdown current pulse.
• Detection of the phase wire with the possibility of reversing the phase (with a switch) after connecting the tester.
• Small dimensions and low weight, and impact-resistant ABS housing.
