Manufacturer:

ITECH
Price:

Please contact us
Priced individually

Ask about product

Description Download

FEATURES:

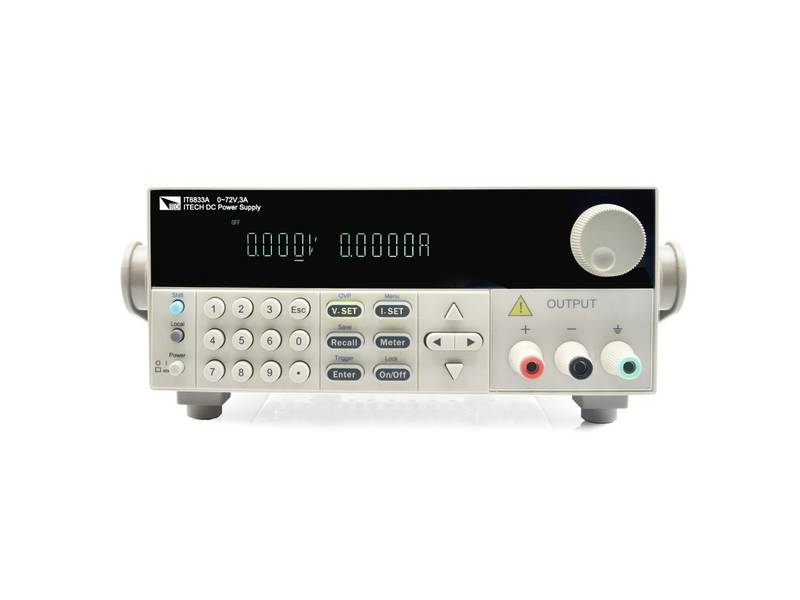

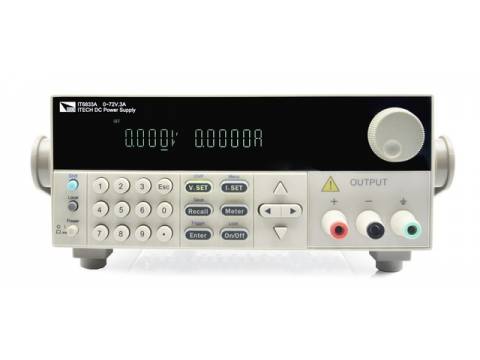

  • Bright VFD display
  • Convenient access to data via dial or numeric keypad
  • High resolution and accuracy
  • Low ripple and noise
  • Intelligent ventilation control, energy efficiency and noise reduction

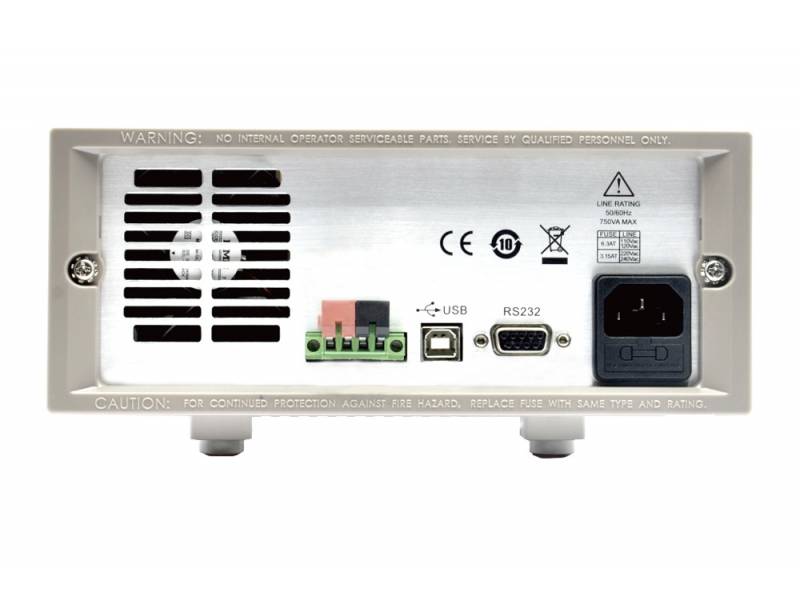

  • Built-in connectors: RS323/USB
  • Output voltage and current values according to the mode used
  • Remote sensing (Remote Sense)
  • List mode - allows you to create a current sequence with specific parameters and a specific step

TECHNICAL DATA (SERIES COMPARISON):

ModelIT6831AIT6832AIT6833A
VOLTAGEOutput voltage0-18V0-32V0-72V
Load adjustment≤0.01% + 6mV≤0.01% + 5mV≤0.01% + 4mV
Linear adjustment≤0.02% + 6mV≤0.01% + 5mV≤0.01% + 4mV
Setting resolution1mV
Reading resolution1mV
Setting accuracy≤0.04% + 8mV
Reading accuracy≤0.04% + 8mV
Attenuation (20Hz-20MHz)≤4mV (Vpp), 1mV (Vrms)≤4mV (Vpp), 1.5mV (Vrms)≤4mV (Vpp), 1mV (Vrms)
CURRENTOutput current0-10A0-6A0-3A
Load adjustment≤0.1% + 5mA≤0.01% + 3mA≤0.01% + 2mA
Linear regulation≤0.1% + 5mA≤0.01% + 3mA≤0.01% + 2mA
Setting resolution0.1mA (<10A) / 1mA (≥10A)0.1mA0.1mA
Reading resolution0.1mA (<10A) / 1mA (≥10A)0.1mA0.1mA
Setting accuracy≤0.1% + 12mA≤0.1% + 8mA≤0.1% + 5mA
Reading accuracy≤0.1% + 12mA≤0.1% + 8mA≤0.1% + 5mA
Attenuation (20Hz-20MHz)≤7mA (Irms)≤6mA (Irms)≤5mA (Irms)
Dynamic recovery time≤100µs≤100µs≤200µs
Power180W192W216W
Dimensions (w*w*g)214.5 * 88.2 * 354.6 [mm].
Weight7.2 kg

ITECH_IT6800_UserManual

User Manual

Download (824.08k)

Labview Controller

Download (701.35k)

catalog_IT6800

Download (1.56M)
To download this file you need to be logged. Please Sign in or register.
