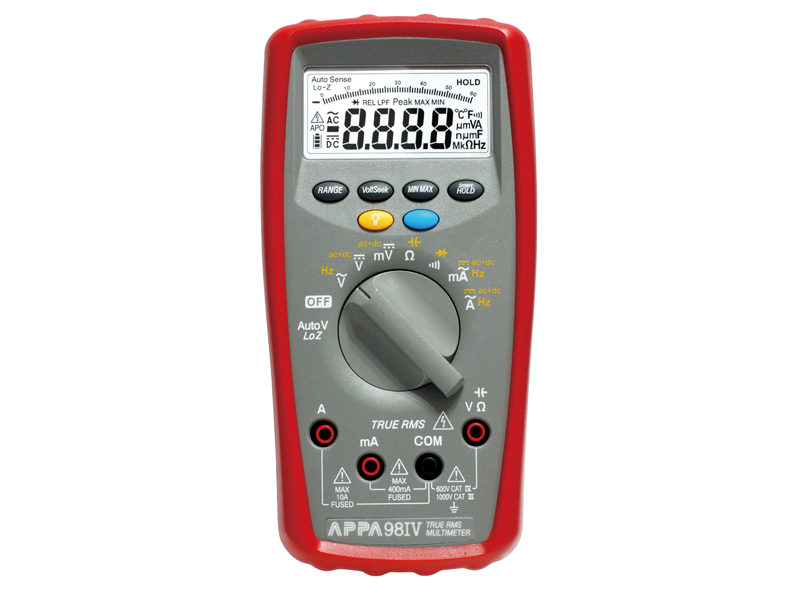

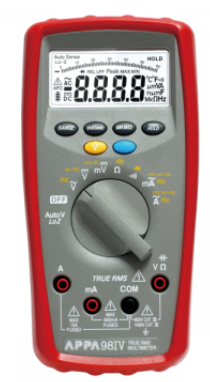

Multimetr cyfrowy APPA 98-IV - AC/DC, dokł. 0,25%, TrueRMS

Manufacturer:

APPA
Price:

467,40 złbrutto

342,00 zł netto
420,66 zł brutto (23% VAT)

The lowest price of this product in the last 30 days before the discount was 467,40 zł gross

Ask about product

It is possible to purchase an accredited multimeter calibration certificate.

Product Overview

The APPA 98-IV is a digital meter with a maximum indication of 6,000. With the VoltSeek™ function, the device enables non-contact detection of live cables and sockets.

See the Related Products tab for available cases for the measuring device.

Key Features

  • Measuring functions
  • Alternating voltage up to 1000V
  • DC voltage up to 1000V
  • Direct and alternating current in ranges 60mA - 10A
  • Frequency in ranges of 100Hz - 100kHz
  • Capacitance in ranges 1μF - 10mF
  • Resistance in ranges 600Ω - 40MΩ
  • Continuity test
  • Diode test
  • Basic accuracy
  • 0,09%
  • Display
  • LCD, 4 digits, 7-segment display
  • Maximum display: 6,000
  • Bar graph - 62 segments
  • Additional features
  • Sampling rate of 3 times/s
  • Maximum resolution 0.01mV / 10μA / 0.1Ω / 0.01Hz / 1pF
  • Memory of the measured value - SMART DATA HOLD mode
  • Memory of maximum and minimum value (MAX/MIN)
  • Measurement of the rms value of a signal of any shape (TrueRMS) in the range from 45Hz to 1kHz
  • Automatic/manual range selection
  • Automatic power off after approximately 20 minutes
  • VoltSeek™ - non-contact detection of live cables and outlets
  • Battery discharge indicator
  • Shock-resistant design (withstands a fall from a height of up to 1.4m)
  • Sealed housing, operation in all weather conditions
  • Rubber cover with holders for measuring probes
  • Safe, fully insulated test leads
  • Safety (cat. IV 600V / cat. III 1000V)
  • Included accessories
  • Measuring wires
  • Rubber sheath
  • Battery
  • Magnetic hanger
  • User manual
  • Warranty
  • 12 months

Feature presentation

Automatic voltage detection with low impedance

Specially designed LoZ (Low Impedance) function prevents

false readings caused by spectral voltages,

making electrical measurements easier and safer,

as well as more reliable.

Intelligent Data Hold

The intelligently designed Data Hold function alerts the user with an

with a beep and flashing backlit display,

when the LCD reading has been paused for an uncertain operation,

to avoid accidentally touching the Data Hold.

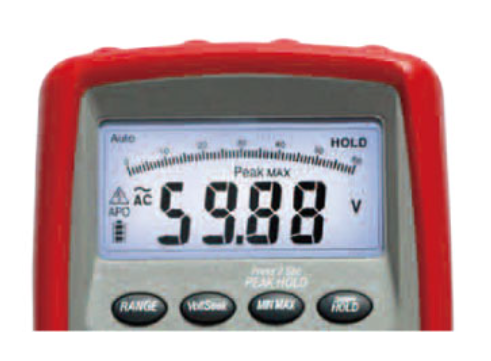

AC+DC True RMS

The APPA 98IV & 99IV features AC+DC True RMS readouts

in both ampere and voltage functions for better

measurement accuracy.

Slim design

Ergonomically designed slim shape with dial

and buttons operated with one hand.

Fits seamlessly into the user's hand and needs.

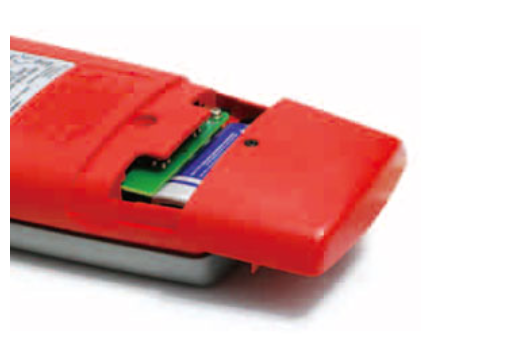

Easy battery replacement

Simply unscrew one screw to remove the battery compartment

in order to replace it. There is no need to open the entire

bottom part of the housing o increase the convenience of the device.

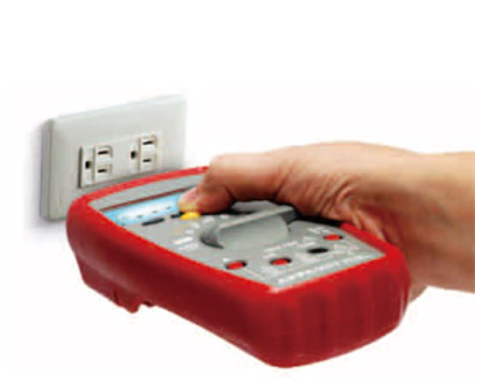

Non-contact voltage detection

VoltSeek TM is a non-contact function that detects live wire

under voltage and outlet. It makes it possible to search for wires

Behind the wall (models 98IV, 99IV).
