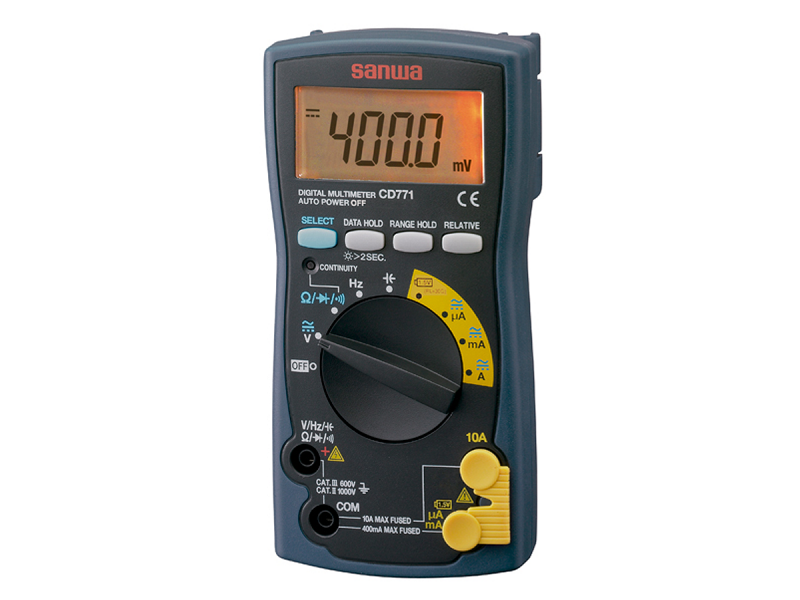

SANWA 4000 CD771 Digital Multimeter, AC/DC, 0.5% accuracy

SANWA 4000 CD771 Digital Multimeter, AC/DC, 0.5% accuracy
Manufacturer:

Sanwa
Price:

240,00 zł netto
295,20 zł brutto (23% VAT)

Ask about product

Description Download Accessories

  • Measurement functions
  • AC voltage up to 1000V
  • DC voltage up to 1000V
  • Current in ranges 400μA - 10A
  • Capacitance in ranges 50nF - 100μF
  • Resistance in ranges 400Ω - 40MΩ
  • Frequency in ranges 5Hz - 100kHz
  • Continuity test (indicated by LED and buzzer)
  • Diode test
  • 1.5V battery test (30Ω load)
  • Basic accuracy
  • 0,5%
  • Display
  • LCD, 4 digits, 7-segment display
  • Maximum display: 4000
  • Display backlighting
  • Additional features
  • Sampling rate of 3 times/s
  • Maximum resolution 0.1mV(DC) / 1mV(AC) / 0.1μA / 0.1Ω / 0.01nF / 0.001 Hz
  • Memory of the measured value - DATA HOLD mode
  • Relative measurement function
  • Automatic/manual range selection
  • Measurement of AC signals in the range from 40 to 400Hz
  • Current measurement sockets cover
  • Possibility of short-term measurement of current up to 20A (measurement max. 10 seconds)
  • Automatic power switch (auto - off)
  • Battery discharge indicator
  • Robust, compact housing with holders for measuring probes
  • Rubber cover
  • Safety (Cat. II 1000 V / Cat. III 600V)
  • Included accessories
  • Measuring cables
  • Battery
  • Operating instructions
  • Warranty
  • 24 months

CD771 - note (ENG)

CD771 - catalog note (ENG)

Download (2.32M)

CD771 - manual (ENG)

CD771 user manual (ENG)

Download (1.06M)
